Product Video

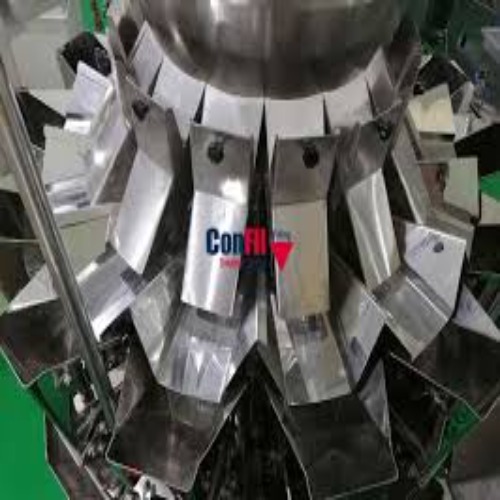

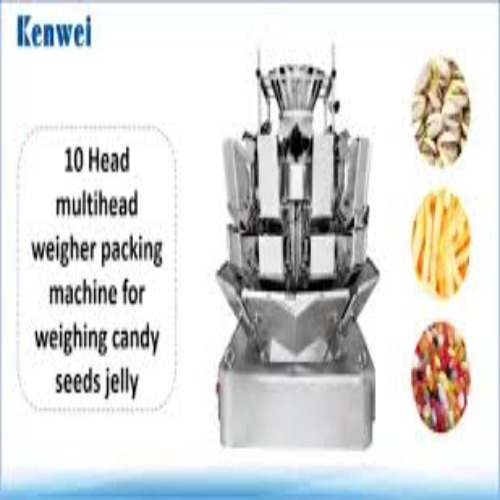

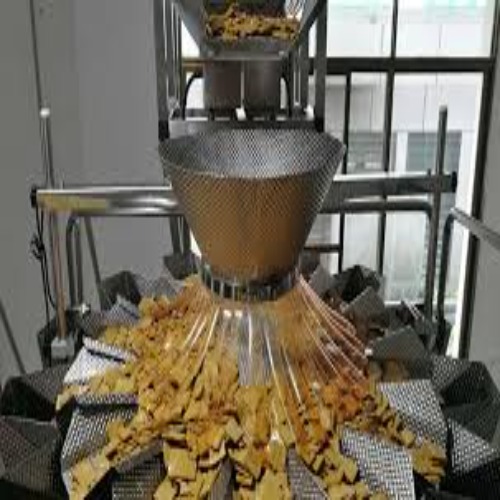

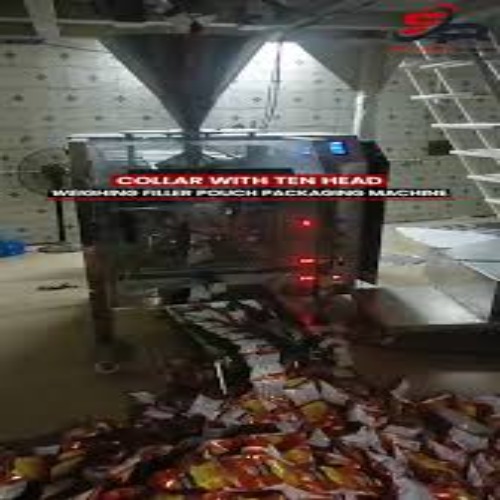

Ten Head weigh filler Machine
1350000.0 INR/Unit
Product Details:
- Noise Level 1 db
- Filling Range UPTO 5KG
- Power Supply 220 VAC
- Features 12.Bag Type: Center sealed pillow type pouch 13.Packaging material: Heat Sealable laminated polyester or PE. 14.Speeds & Accuracies: (Depending upon the physical and flow characteristics of the product) @ filling accuracy of +/- 2% of the total grammage. PPM 10gm to 50 gm @ 55-60 pouches per min PPM 100gm to 250 gm @ 35-45 pouches per min PPM 500gm to 1kg @ 25-35 pouches per min The above stated speed can be met subject to:- a)Uninterrupted product flow. b)Uniformity of the machine to an effective air pressure system. c)Connection of the machine to an effective air pressure system. d)Strict Maintenance of the machine as per our Instruction Manual. The above stated accuracies can be met subject to:- a)Feeding of the product at a constant rate so as to maintain the level inside the machine hopper. b)Cleaning of the Auger Screw & Pipe at regular time intervals. Constant Bulk density
- Usage 4000 WATT
- Application To avoid any kind of accident, Machine ensures that if anyone tries to open the door of the machine while in running position then, the machine stops immediately If there is any kind of error in the machine, it gives alarm immediately once you switch on the machine. The machine is equipped with a visual alarm system to ensure there will be no accident while running the machine.
- Type Filling Machine
- Click to View more
X
Ten Head weigh filler Machine Price And Quantity
- 1 Unit
- 1350000.0 INR/Unit
Ten Head weigh filler Machine Product Specifications
- 1 db
- Electric
- Silver
- 1 YEAR
- Filling Machine
- UPTO 5KG
- Rust Proof, Highly Efficient, Less Power Consumable, Heavy Duty Machine, Durable
- Yes
- Heat Sealing
- Automatic
- Other
- 12.Bag Type: Center sealed pillow type pouch 13.Packaging material: Heat Sealable laminated polyester or PE. 14.Speeds & Accuracies: (Depending upon the physical and flow characteristics of the product) @ filling accuracy of +/- 2% of the total grammage. PPM 10gm to 50 gm @ 55-60 pouches per min PPM 100gm to 250 gm @ 35-45 pouches per min PPM 500gm to 1kg @ 25-35 pouches per min The above stated speed can be met subject to:- a)Uninterrupted product flow. b)Uniformity of the machine to an effective air pressure system. c)Connection of the machine to an effective air pressure system. d)Strict Maintenance of the machine as per our Instruction Manual. The above stated accuracies can be met subject to:- a)Feeding of the product at a constant rate so as to maintain the level inside the machine hopper. b)Cleaning of the Auger Screw & Pipe at regular time intervals. Constant Bulk density
- 220 VAC
- 3000 Pcs/hr
- SS304
- 280 Volt (v)
- 4000 Watt (w)
- To avoid any kind of accident, Machine ensures that if anyone tries to open the door of the machine while in running position then, the machine stops immediately If there is any kind of error in the machine, it gives alarm immediately once you switch on the machine. The machine is equipped with a visual alarm system to ensure there will be no accident while running the machine.
- 4000 WATT
- 400 Foot (ft)
- PLC Control
- 550 Kilograms (kg)
Ten Head weigh filler Machine Trade Information
- YES
- Others
- 1 Unit Per Week
- 7 Days
- No
- Contact us for information regarding our sample policy
- Powder coated full size control panel. The MMI (operator Interface) with keyboard, temperature indicators, controllers, and other machine control buttons and emergency stop switches. The panel is protected against poor power supply quality or in other words the machine stops in case of over load, under voltage and single phasing and surges. All wires and terminals are numbered inside the panel. The temperature controls and setting are provided in the operator interface. Built in EMC Filter for reduction in noise effect. In built stirrer used for stirring of powder to avoid formation of lumps. 11) Filling System Multi Head Weigher ( 10 Head) : Stable 10bucket structure Stainless Steel cladded and Stainless Steel panel Best weight combinations chosen by scientific computer. Correct calculation by high- precision load cell. Running stability through Pneumatics. A regulated speed of open- close material bucket cover provides measured material, prevents crushing, and damage. All the contact parts made of stainless steel to maintain neatness and hygiene. 12.Bag Type: Center sealed pillow type pouch 13.Packaging material: Heat Sealable laminated polyester or PE. 14.Speeds & Accuracies: (Depending upon the physical and flow characteristics of the product) @ filling accuracy of +/- 2% of the total grammage. PPM 10gm to 50 gm @ 55-60 pouches per min PPM 100gm to 250 gm @ 35-45 pouches per min PPM 500gm to 1kg @ 25-35 pouches per min The above stated speed can be met subject to:- a)Uninterrupted product flow. b)Uniformity of the machine to an effective air pressure system. c)Connection of the machine to an effective air pressure system. d)Strict Maintenance of the machine as per our Instruction Manual. The above stated accuracies can be met subject to:- a)Feeding of the product at a constant rate so as to maintain the level inside the machine hopper. b)Cleaning of the Auger Screw & Pipe at regular time intervals. c)Constant Bulk density. Note:- a)1Voltage Stabilizer for machine: 6KVA, for single phase power supply, 3 step type, suitable for input of 140 to 280 volts b)COMPRESSED AIR PRESSURE: Adjust the regulator to give a reading on the dial gauge of 6 kg/cm2 (85psi). (This pressure should remain constant and it is recommended that the compressor is set to cut in and out, at pressure of 8 kg/cm2(115psi) and 10 kg/cm2 (140 psi) respectively.
- Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East
- Central India, North India, East India, Gujarat, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Delhi, Andaman and Nicobar Islands, Arunachal Pradesh, All India, South India, Maharashtra, Nagaland, Rajasthan
- ISO CERTIFIED
Product Description
1.BaggerMachine
Equipped with:
PLC Controller- Invt/ Delta (Make In Taiwan)
HMI (7 Inch Touch Screen Panel)- Invt/ Delta (Make In Taiwan)
Mechanicallyoperatedlongitudinalandcrosssealingjawassemblies suitable for Heat Sealablelaminates.
Pneumatic(FestoJapan)engage/dis-engagesystemwithadjustablepressure forbeltdraw-offsystem.
Pneumaticallyoperatedverticalsealingsystembestsuitableforheat sealable laminates with stroke adjustmentfacilities.
Bon Vario Italy brand Geared Motor
Omron Japan PID Temperature controllers
AC Drive- Invt/ Delta (Make In Taiwan)
Servo Motor 1Kw.
Food Grade 304 Stainless steel contact parts with covering.
Eye mark sensor P&F Germany brand
2.Auto-PrintMark(P&FGermany)SensorUnit
Independentassemblyusedfortrackingmarksensorunitrearand forward.
PrintMarkscannerusedforscanningeye-marksforprintregisteredbags.
Theminimumwidthofeye-markshouldbe8mmandincontrastwith print layout.
Note: The digital control also allows tracking the registration system directly from display( MMI Main Machine Interface).
3.Web AligningAssembly.
Trolleybasedaligningofwebathigherspeedstomaintainprecisionin pouch geometry or ease in aligningcenter.
Floating unwind or web path to provide smooth operation.
Small displacements allow controlling entire web.
4.Web UnwindAssembly.
Motorcarryingaluminumrollerwithrubberringsforperipheral rotation around theweb.
Aluminumrollerusedtodecreasethewaitandrubberringssupportthe grip of webroll.
Thisunitisusedtomaintaintheconstanttensioninentirewebatany point.
Consistency in tension leads to lesser slippage of paper driving belts.
Thepaperpullingtorquedecreasesandincreasestheoperationallifeof pulling beltsappreciable.
Limitswitchestooperatethemotorandtoensurestopincaseoffilm jam or at the end of filmroll.
IMP: Even though the unwind works with two sensing devices, PLC also controls the unwind time for safety measures.
5.Bag Draw downMechanism
Packaging material draw down with belts, driven separately by Motor.
Self-aligningcouplingssupportdrivebeltsinbettermotion.
Belt pressure adjusted pneumatically.
6.Perforation or BatchAssembly.
Pneumatically activated knife for cutting the streamer at desired count.
The count is controlled digitally by PLC.
The activation of coil for activation of cylinder is transistor based.
Unit cylinder used for action of perforation.
Horizontal Sealing Jaw for laminates.
7.Set of Front & Rear Sealing Jaws complete with pneumatically activated knife, heaters andthermocouple.
StandarddesignisV-groovein2mmpitch.
TheintegratedtooliscapableofachievingBottomSealandtheTopSealof the next bag in a singlecycle.
8.Longitudinal Sealing Jaw forlaminates.
Longitudinal Sealing tool suitable for vertical seal.
Jaw width 8 mm.
Sealing area 8mm both side and side seal
V-Notchcutting
Sealing tool is complete with cartridge heater and thermocouple.
9.Pouch/Bag FormingAssembly.
Every Individual Paper Setting will contain:
Individual Top and Bottom Plate.
Former Pipe and Pouch Former/Collar.
