Product Video

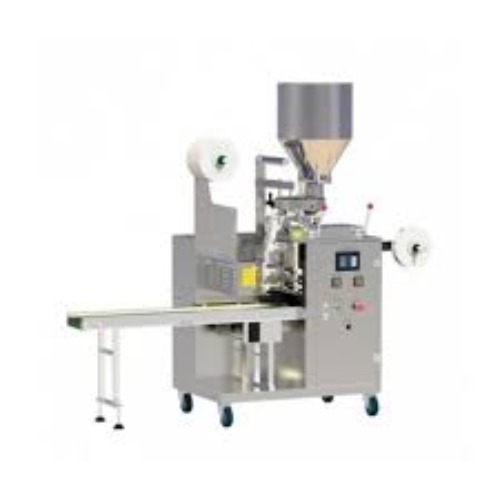

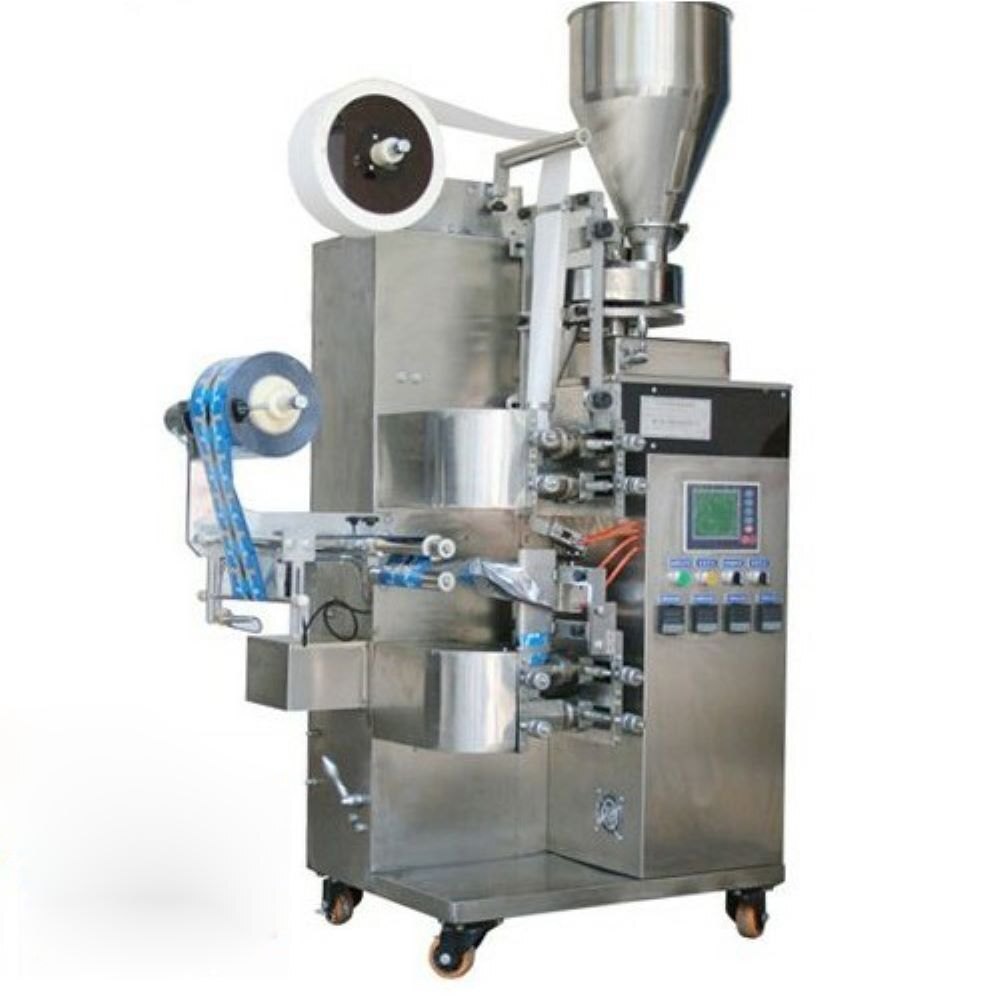

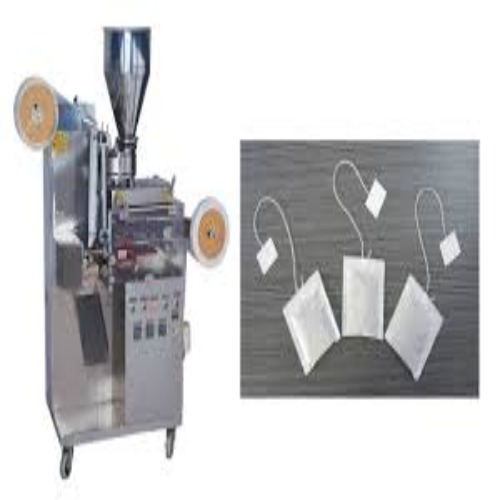

Dip Tea Bag Machine

850000.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply 280VAC
Usage Total Power 3.5 KW
Features It is hot-sealed, automatic and multifunction packing equipment. The main characteristic of this equipment is that it can mold in one time to protect the material from direct contact with the worker s hands and improve the efficiency. The inner bag is filter paper tagging with the thread and label is automatically available. Controlled by a step motor, the outer seal has a fixed length and a correct position. PID is used to adjust the temperature of controller for more accurate temperature control. PLC is used to control the motion of the whole machine, with a human machine interface display and easy operation. All touchable material parts are made of food grade Stainless steel to ensure sanitary and reliable products. The attached device has functions including cutting, date printing and easy tearing
Noise Level 1
Filling Range 1gm - 10gm volumetric cup Filler
Application Bon Vario ( Italy) Bon Vario ( Italy ) Delta/ INVT (Taiwan) Delta/ INVT (Taiwan) Multi Span Japan PID Digital Pneumax ( Italy) Stainless Steel 304 Mitsubishi Japan
Type Filling Machine
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Dip Tea Bag Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 850000.0 INR/Piece

Dip Tea Bag Machine Product Specifications

Power Supply 280VAC
Control System PLC Control
Power 3500 Watt (w)
Dimension (L*W*H) 74 Foot (ft)
Material SS304
Voltage 280 Volt (v)
Application Bon Vario ( Italy) Bon Vario ( Italy ) Delta/ INVT (Taiwan) Delta/ INVT (Taiwan) Multi Span Japan PID Digital Pneumax ( Italy) Stainless Steel 304 Mitsubishi Japan
Filling Range 1gm - 10gm volumetric cup Filler
Auxiliary Packaging Machine Type Other
Color Silver
Drive Type Electric
Noise Level 1
Capacity 3000 Pcs/hr
Automatic Grade Automatic
Sealing Type Heat Sealing
Feature Durable, Rust Proof, Highly Efficient, Heavy Duty Machine, Less Power Consumable
Weight (kg) 525 Kilograms (kg)
Computerized Yes
Warranty 1 Year
Features It is hot-sealed, automatic and multifunction packing equipment. The main characteristic of this equipment is that it can mold in one time to protect the material from direct contact with the worker s hands and improve the efficiency. The inner bag is filter paper tagging with the thread and label is automatically available. Controlled by a step motor, the outer seal has a fixed length and a correct position. PID is used to adjust the temperature of controller for more accurate temperature control. PLC is used to control the motion of the whole machine, with a human machine interface display and easy operation. All touchable material parts are made of food grade Stainless steel to ensure sanitary and reliable products. The attached device has functions including cutting, date printing and easy tearing
Type Filling Machine
Usage Total Power 3.5 KW

Dip Tea Bag Machine Trade Information

FOB Port YES
Payment Terms Others
Supply Ability 2 Piece Per Month
Delivery Time 30 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Gear Box Bon Vario ( Italy) Motor Bon Vario ( Italy ) PLC Delta/ INVT (Taiwan) HMI Delta/ INVT (Taiwan) Temperature Controller (PID) Multi Span Japan PID Digital Pneumatics Pneumax ( Italy) All Parts Made Stainless Steel 304 Servo Motor Mitsubishi Japan
Main Export Market(s) Australia, Asia, North America, Western Europe, Middle East, Africa
Main Domestic Market Assam, Jammu and Kashmir, Tamil Nadu, Telangana, Pondicherry, West Bengal, All India, South India, East India, Karnataka, Kerala, Chandigarh, Odisha, Punjab, Uttarakhand
Certifications ISO CERTIFIED

Product Description

Sealing Type	3 Side Seal

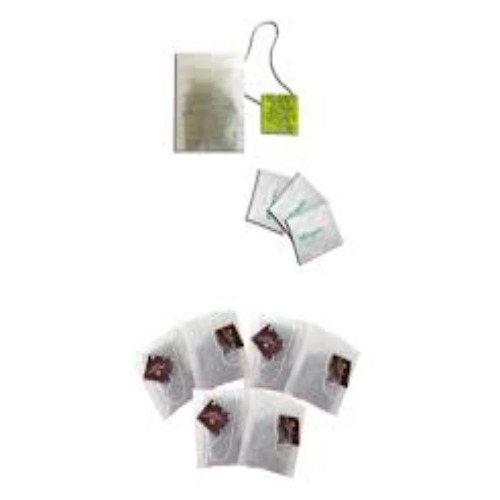

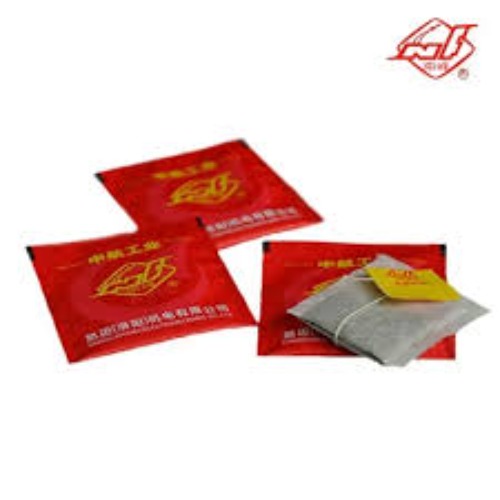

Features	The tea bag with thread and tag & outer envelope automatically
Filling Range	1gm - 10gm volumetric cup Filler
Speed	40-50bag/min
Tea Bag Size	W: 45-80 ( mm ) L: 50-70 ( mm )
Outer Bag Size	W: 75-95(mm) L: 80-120 (mm)
Tag Size	W: 40-55 ( mm ) L: 20-40 ( mm )
Thread Length	140 ( mm )
Power	220V / 50Hz
Air pressure	6 kg/Sq. Cm (200 L/Min)
Total Power	3.5 KW
Machine Dimension	*( LWH )* *17507401950*
Weight	550 Kg
