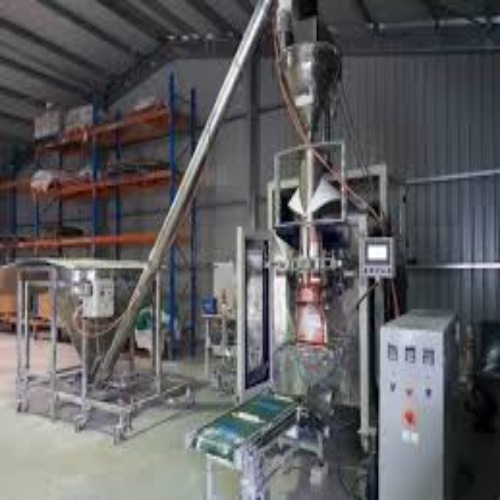

1.BaggerMachine
Equipped with:
PLC Controller DELTA/ INVT
HMI(7.3InchTouchScreenPanel)-DELTA/ INVT
Main Servo Motor - DELTA/ INVT
Pulling servo Motor - DELTA/ INVT
Mechanicallyoperatedlongitudinaland cross sealing jaw assembliessuitablefor Heat Sealablelaminates.
Pneumatic(PneumaxItaly)engage/dis-engagesystem withadjustablepressure for belt draw-offsystem.
Pneumaticallyoperatedverticalsealingsystembestsuitableforheatsealable laminates with stroke adjustmentfacilities.
Bon Varo Italy brand GearedMotor
Omron Japan PID Temperature controllers
ACDrive For auger Stellar - DELTA/ INVT
FoodGrade304Stainlesssteelcontactpartswithcovering.
Independentassemblyusedfortrackingmarksensorunitrearandforward.
PrintMarkscannerusedforscanningeye-marksforprintregisteredbags.
Theminimumwidthofeye-markshouldbe8mmandincontrastwithprint layout.
Note:The digitalcontrolalsoallowstracking theregistrationsystemdirectly from display (MMI Main MachineInterface).
Trolleybasedaligningofwebathigherspeedstomaintainprecisioninpouch geometry or ease in aligningcenter.
Floatingunwindorwebpathtoprovidesmoothoperation.
Small displacements allow controlling entire web.
Motorcarryingaluminum rollerwithrubberrings forperipheralrotation around theweb.
Aluminumrollerusedtodecreasethewaitandrubberringssupportthegripof webroll.
Thisunitisusedtomaintaintheconstanttensioninentirewebatanypoint.
Consistencyintensionleadstolesserslippageofpaperdrivingbelts.
Thepaperpullingtorquedecreasesandincreasestheoperationallifeofpulling beltsappreciable.
Limitswitchestooperatethemotorandtoensurestopincaseoffilmjamorat the end of filmroll.
IMP:Eventhoughtheunwind workswith twosensingdevices,PLC alsocontrolsthe unwind time for safetymeasures.
Packagingmaterialdrawdownwithbelts,drivenseparatelybyMotor.
Self-aligningcouplingssupportdrivebeltsinbettermotion.
Belt pressure adjustedpneumatically.
Pneumaticallyactivatedknifeforcuttingthestreameratdesiredcount.
ThecountiscontrolleddigitallybyPLC.
Theactivationofcoilforactivationofcylinderistransistorbased.
Unitcylinderusedforactionofperforation.
Horizontal Sealing Jaw forlaminates.
Standarddesign is V-groove in 2mmpitch.
TheintegratedtooliscapableofachievingBottomSealandtheTopSealofthenext bag in a singlecycle.
LongitudinalSealingtoolsuitableforverticalseal.
Jaw width15mm.
Sealingtooliscompletewithcartridgeheaterandthermo couple.
Every Individual Paper Setting will contain:
Individual Top and BottomPlate.
Former Pipe and PouchFormer/Collar.
Powder coated full size controlpanel.
The MMI (operatorInterface)with keyboard, temperatureindicators, controllers, andothermachinecontrolbuttonsandemergencystopswitches.
Thepanelisprotectedagainstpoorpowersupplyqualityorinotherwordsthe machinestopsincaseofoverload,undervoltageandsinglephasingandsurges.
Allwiresandterminalsarenumberedinsidethepanel.
Thetemperaturecontrolsandsettingareprovidedintheoperatorinterface.
Lightinweightforeaseininstallation.
Inbuiltinternalrevolverprovidedforaccuracyofpositioningofaxis.
Drivesusedformotorareloadedwithfeatureofautophasing.
Clampingresistorsareusedforinstantbreaking.
BuiltinEMCFilterforreductioninnoiseeffect.
Inbuiltstirrerusedforstirringofpowdertoavoidformationoflumps.
13.Packagingmaterial:HeatSealablelaminatedpolyesterorPE.
14.Speeds &Accuracies:
(Dependinguponthephysicalandflowcharacteristicsoftheproduct) @ filling accuracyof+/-1%)
PPM 5kg to 10kg @ 15-25pouches permin
