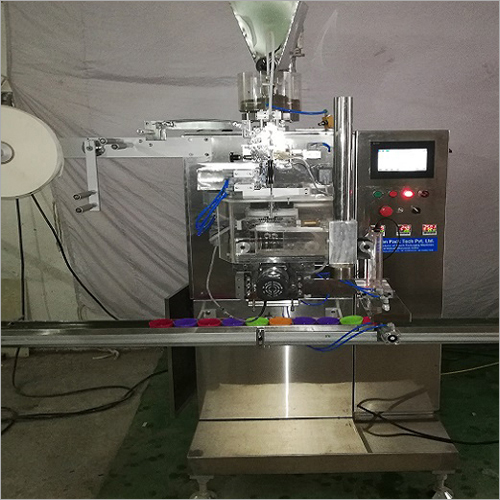

Naswar Automatic Packing Machine
1800000.00 - 2500000.00 INR/Unit
Product Details:
- Material Metal
- Automatic Grade Semi-Automatic
- Control System PLC Control
- Drive Type Electric
- Voltage 220-380 Volt (v)
- Warranty 1.5 Years
- Supply Ability : 10 Unit Per Month
- Click to view more
X
Price And Quantity
- 1800000.00 - 2500000.00 INR/Unit
- 1 Unit
Product Specifications
- Electric
- PLC Control
- Semi-Automatic
- 1.5 Years
- 220-380 Volt (v)
- Metal
Trade Information
- 10 Unit Per Month
- 3 Days
- Yes
- Contact us for information regarding our sample policy
- All India
Product Description
Technical Specification :
| Bag width standard: | 12 mm or 18 mm |
| Special bag width: | As per requirement |
| Bag length: | min. 25 mm max. 45 mm |
| Special bag length: | up to 45 mm |
| Filling volume per bag: | approx. 0,2 up to 1,0 g, adjustable |
| Output bags/min: | approx. (2×350)=700/min |
| Number of lanes: | Independent |
| Speed | 300-350 ppm |
| Width of film reel: | 31 mm or 41 mm + special width |
| Diameter of film reel core: | 70/76 mm |
| sealing pressure: | up to 1000 N |
| Air connection: | 6 bar |
| Wattage: | approx. 5 KW |
| Voltage supply standard: | 400V/3/N/PE/50Hz |
| Protection class: | IP 54 |
| Weight: | approx. 700 kg |
| Color standard: | stainless steel , Silver, Red |
| Packaging material: | Non woven Filter Paper, |
Technical Details of Naswar Packing Machine :
- PLC Mitsubishi Japan
- HMI Mitsubishi Japan
- Geared Motor : Lenze, Bonvario (Italian)
- A.C. Drive : Mitsubishi (Japanese)
- Pneumatic : Festo (German) , SMC (Japanese), Pneumax (Italian)
- Sensor : P&F (German)
- Temperature controller : Omron, PID (Japanese)
- Contact parts : Stainless steel 304 Food Grade
- Auto Counting system
- Conveyor system
- All Electrical Parts : Schneider (France)
Other Details
- Usage : Industrial
- Features : Long Life, easy to maintain
- Surface Treatment : Polished
- Export market: world wide
- Delivery time depend on order location
